11 standard colors per series, referencing RAL standards. Custom colors available on enquiry. Minimum order: 20 kg per color for FEP / PFA, 15 kg for ETFE / PVDF. Typical lead time 7–10 days, confirmed at order.
FEP and PFA are perfluoropolymers (fully fluorinated); ETFE and PVDF are partially-fluorinated. Each series carries 11 standard colors.
MFR: 20–26 g/10min · Density: 2.12–2.17 g/cm³ · Melting point: 265 ± 15 ℃ · Tensile strength: ≥17 MPa · Elongation at break: ≥280%
Pellet size: 2–3 mm × 1.5–2.5 mm. Packaging: 5 kg/bag, 20 kg/drum (4 bags). CTI RoHS tested — all 11 colors.
MFR: 20–26 g/10min · Density: 2.12–2.16 g/cm³ · Melting point: 302–310 ℃ · Tensile strength: ≥17 MPa · Elongation at break: ≥280%
Pellet size: 2–3 mm × 1.5–2.5 mm. Packaging: 5 kg/bag, 20 kg/drum (4 bags). Grade suffix: P (e.g. BK-0104P).
MFR: 25–30 g/10min · Density: 1.68–1.72 g/cm³ · Melting point: 260 ± 15 ℃ · Tensile strength: ≥19 MPa · Elongation at break: ≥290%
Pellet size: 2–3 mm × 1.5–2.5 mm. Packaging: 5 kg/bag, 15 kg/drum (3 bags). Grade suffix: -E (e.g. BK-0104-E).
MFR: 20–30 g/10min · Density: 1.75–1.79 g/cm³ · Melting point: 165 ± 10 ℃ · Tensile strength: ≥35 MPa · Elongation at break: ≥25%
Pellet size: 2–3 mm × 1.5–2.5 mm. Packaging: 5 kg/bag, 15 kg/drum (3 bags). Grade suffix: -PV (e.g. BK-0104-PV).
Grade codes follow our product specification sheets. Colors reference the closest RAL standard; actual color depends on insulation wall thickness and base resin. Custom colors matched on request.
| Color | RAL Ref. | FEP | PFA | ETFE | PVDF |
|---|---|---|---|---|---|

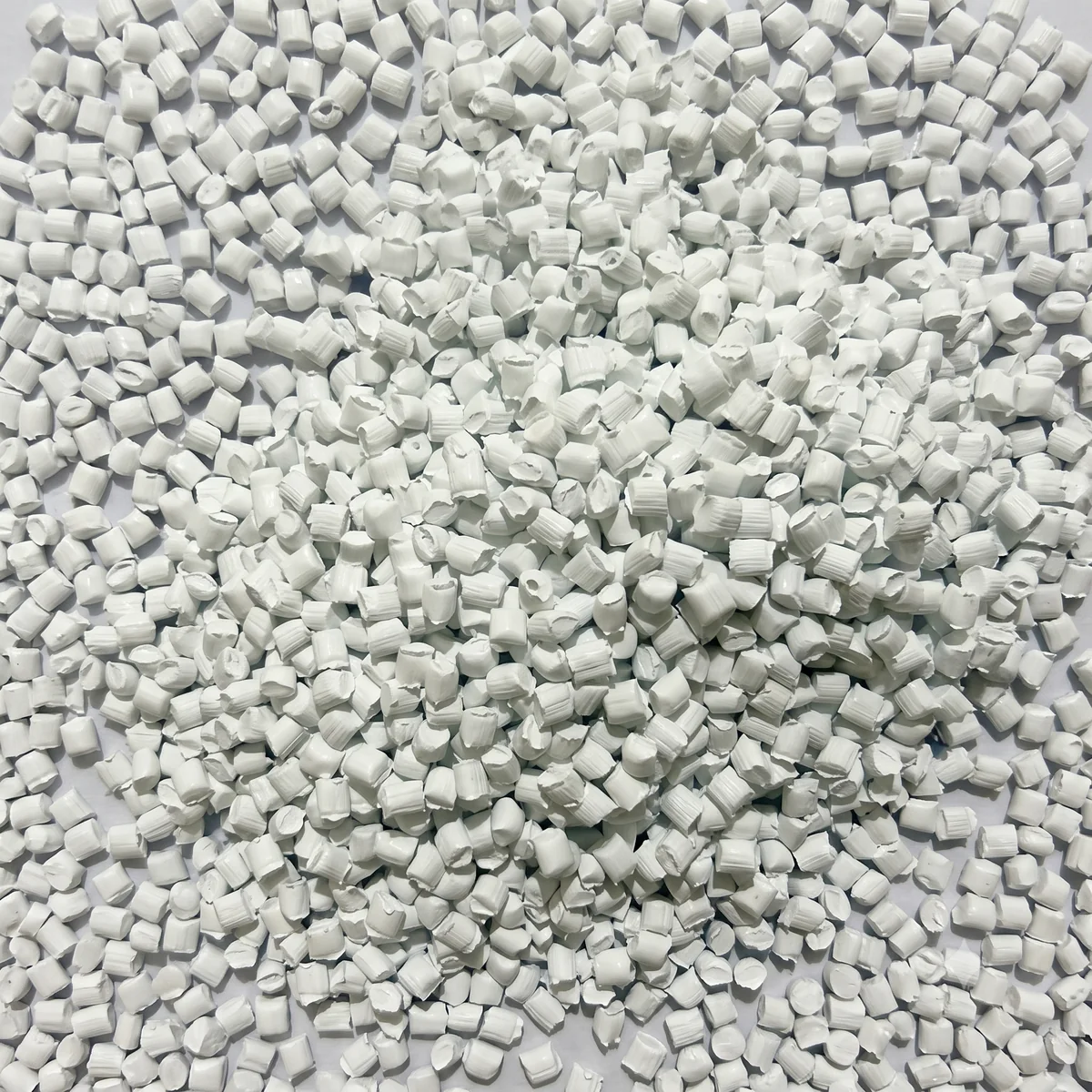

| White | 9016 | WH-6008 | WH-6008P | WH-6008-E | WH-6008-PV |
| Grey | 7012 | GY-1007 | GY-1007P | GY-1007-E | GY-1007-PV |
| Orange | 2009 | OR-0107 | OR-0107P | OR-0107-E | OR-0107-PV |

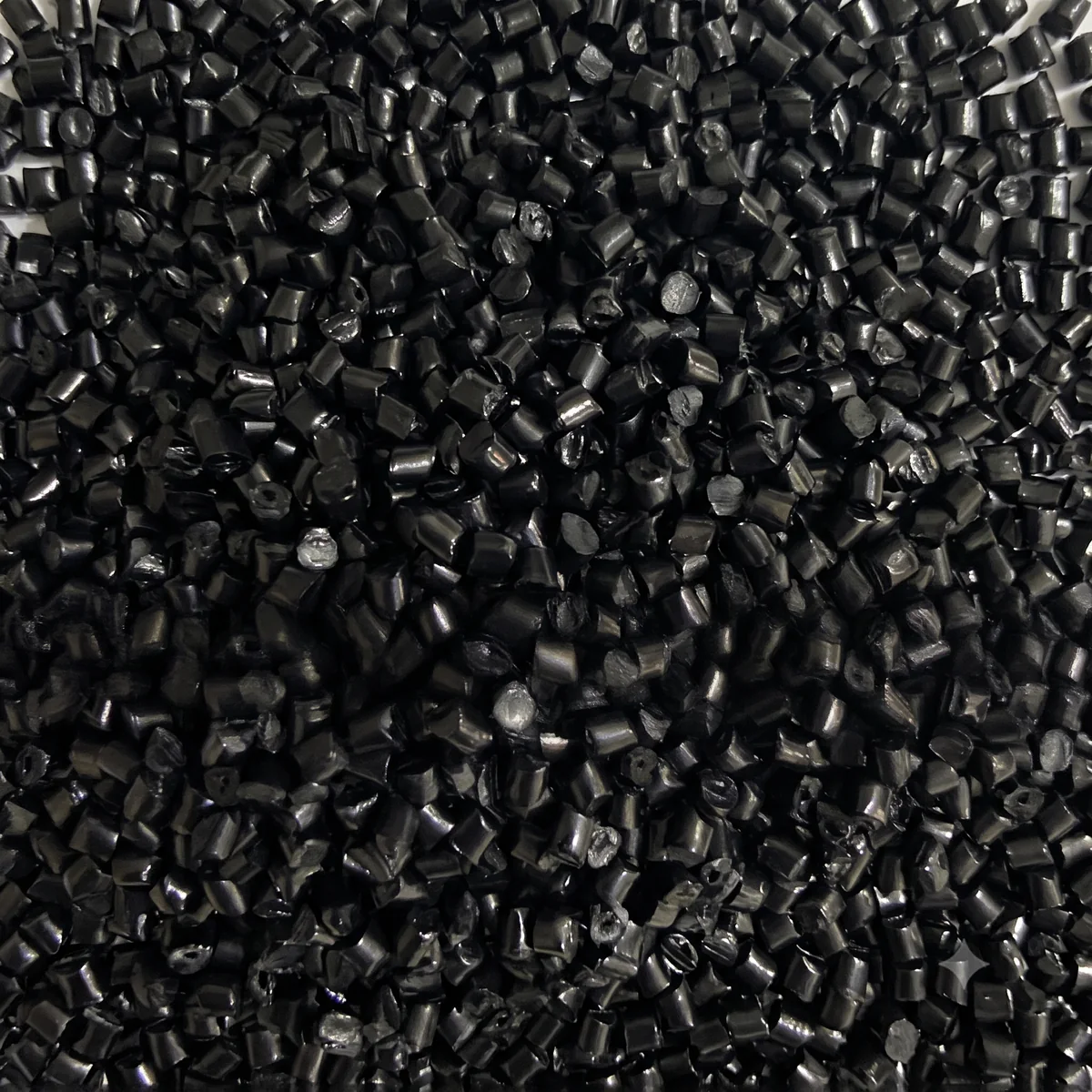

| Black | 9004 | BK-0104 | BK-0104P | BK-0104-E | BK-0104-PV |

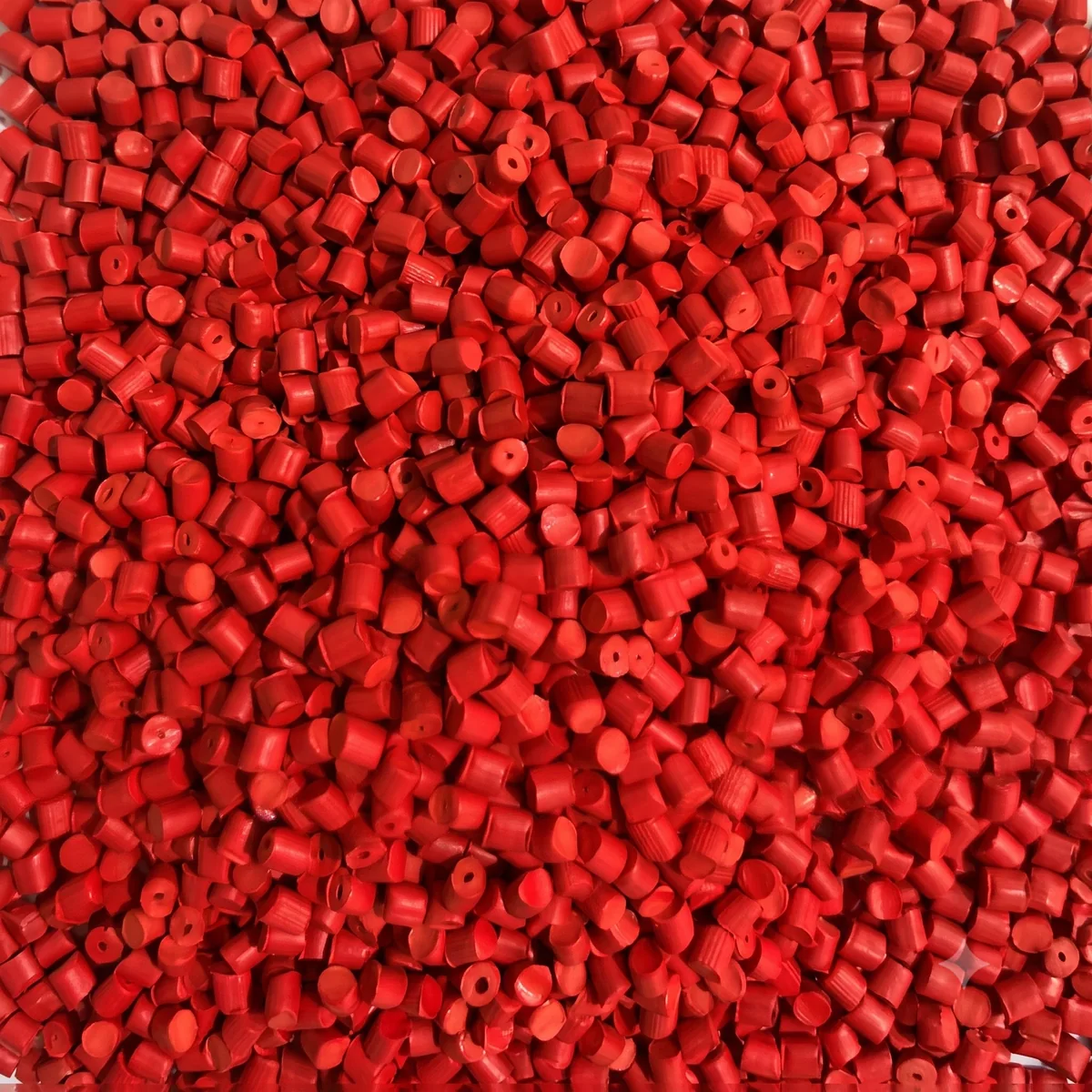

| Red | 3020 | RD-3911 | RD-3911P | RD-3911-E | RD-3911-PV |

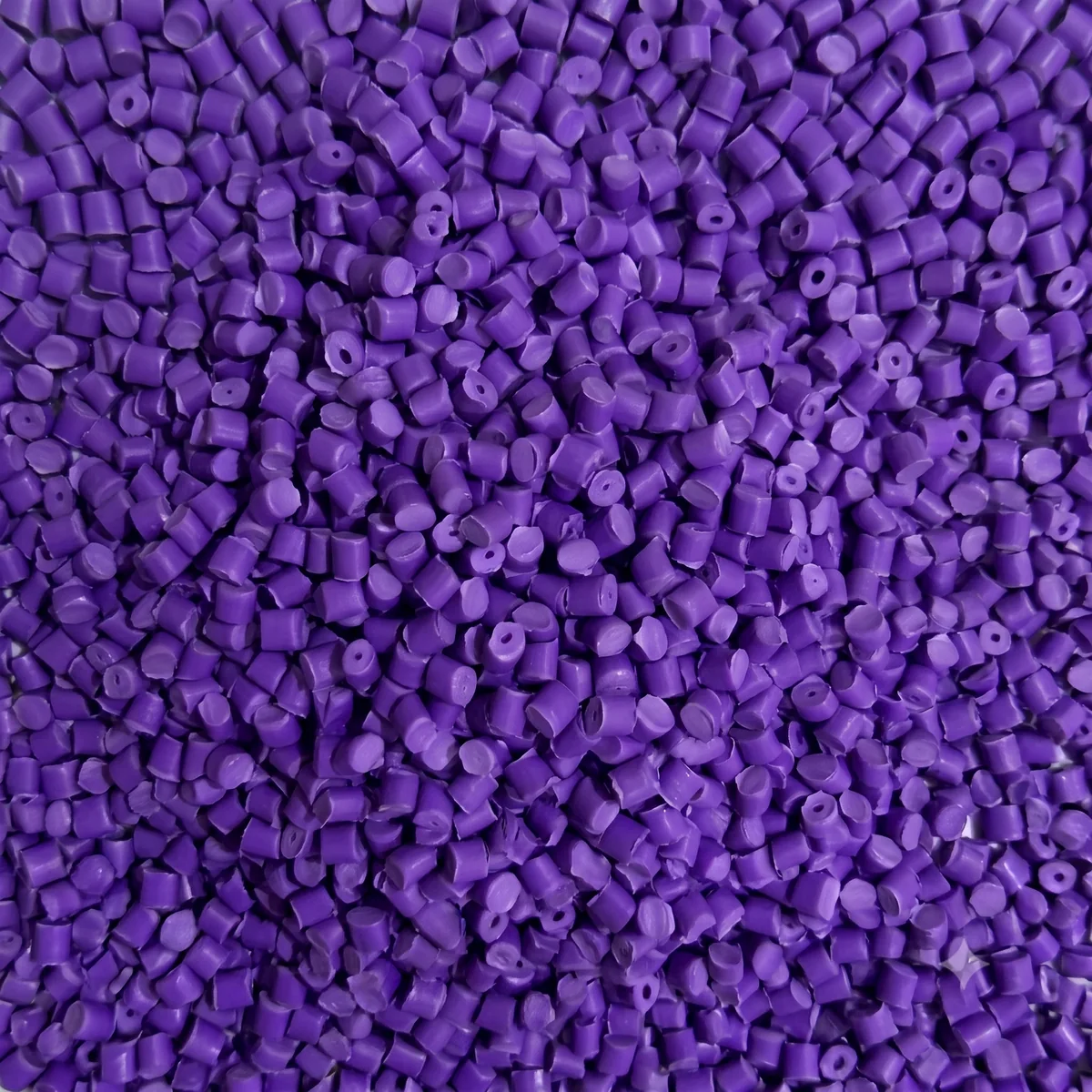

| Purple | 4005 | PL-9218 | PL-9218P | PL-9218-E | PL-9218-PV |
| Pink | 3014 | RH-0102 | RH-0102P | RH-0102-E | RH-0102-PV |

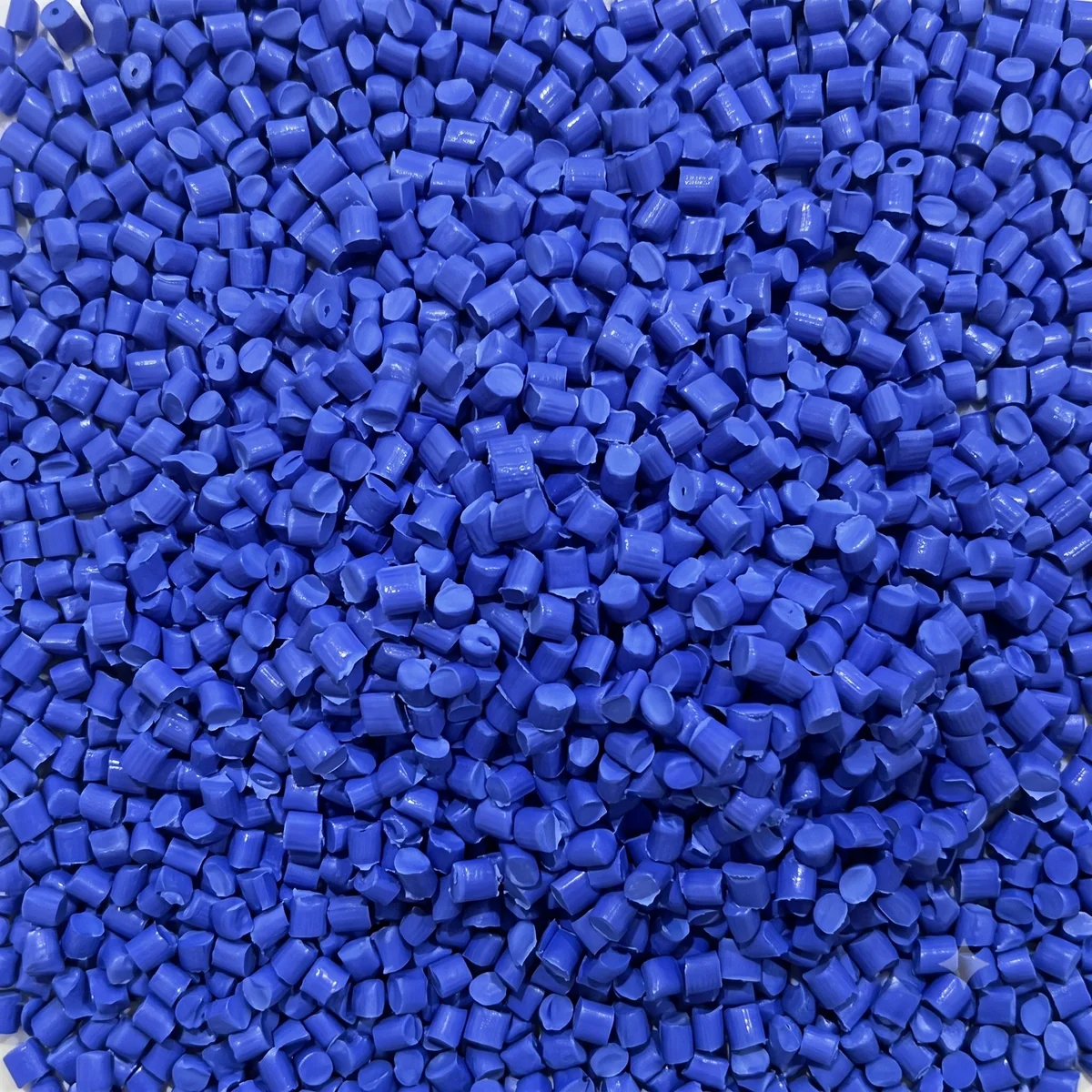

| Blue | 5017 | BL-0510 | BL-0510P | BL-0510-E | BL-0510-PV |

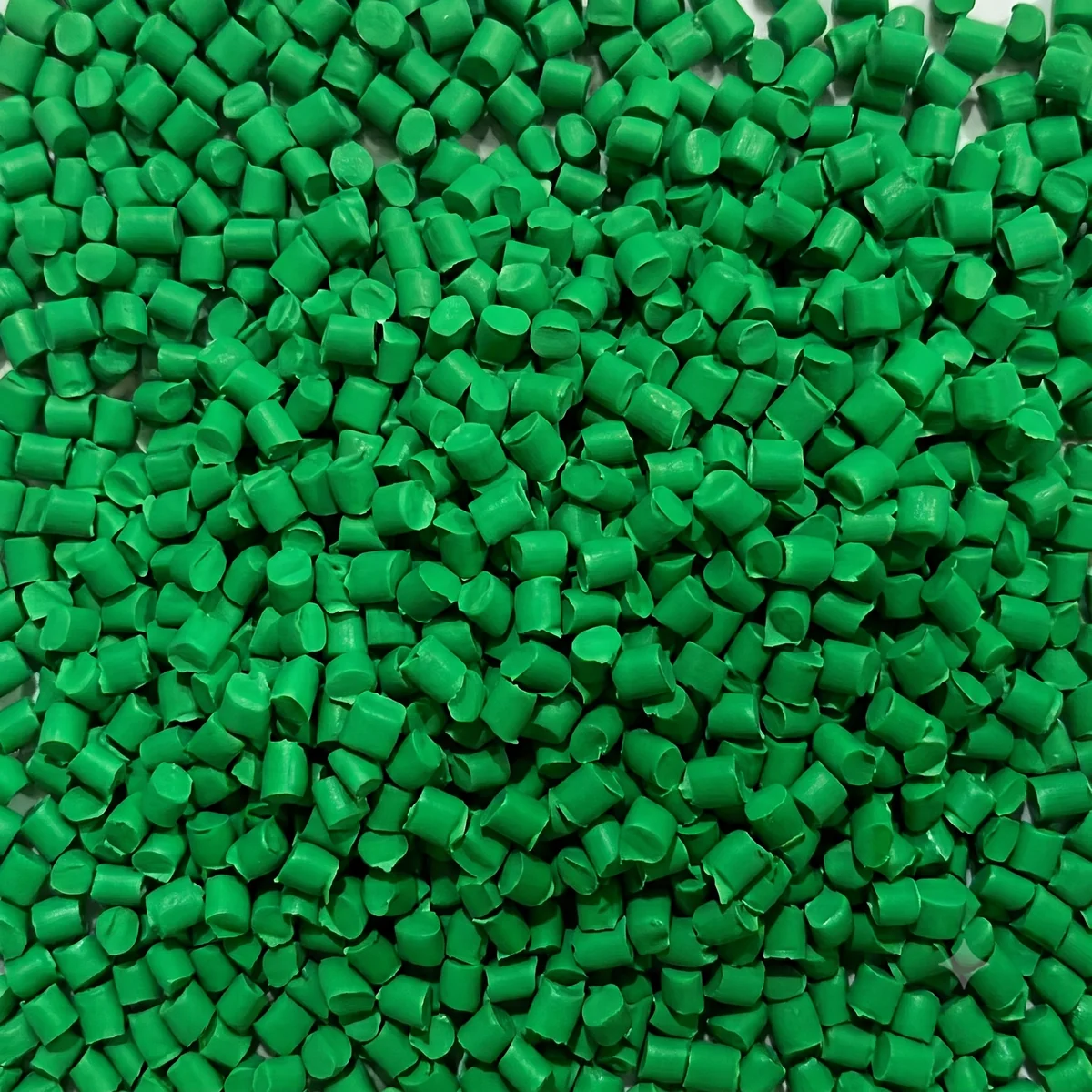

| Green | 6032 | GR-4423 | GR-4423P | GR-4423-E | GR-4423-PV |
| Brown | 8011 | BR-10003 | BR-10003P | BR-10003-E | BR-10003-PV |

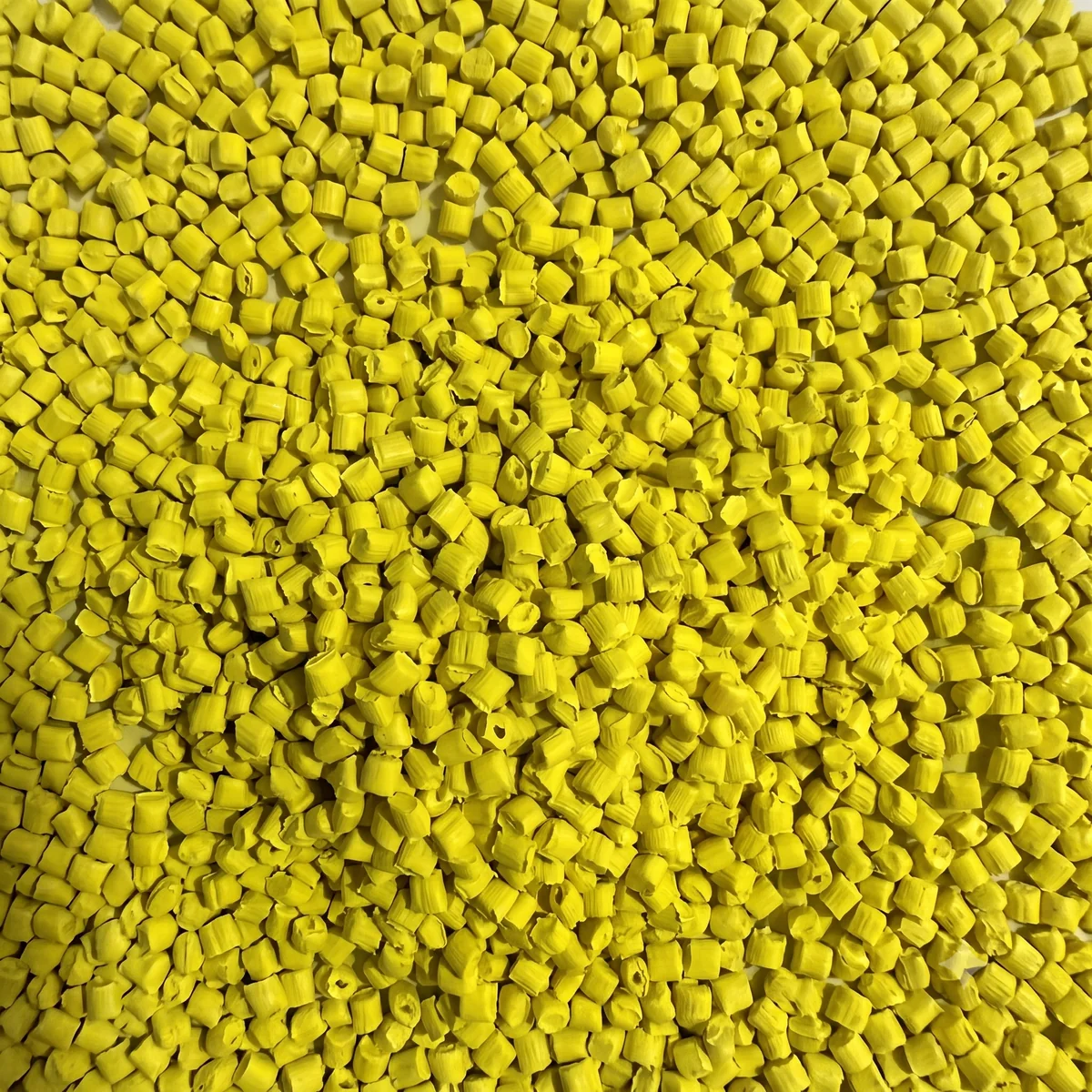

| Yellow | 1016 | YL-1505 | YL-1505P | YL-1505-E | YL-1505-PV |
Grade codes follow our product specification sheets. Final color appearance depends on insulation wall thickness and base resin color. Contact us for PVDF grades or custom color matching.
Colors reference the closest RAL standard; final appearance depends on insulation wall thickness and base resin. Remaining standard and custom colors available on request.
Recommended ratios are guidelines; final loading is adjusted by wall thickness and base color.
| Wall thickness | Addition rate |
|---|---|
| 0.15 mm | 2–5% |
| 0.25 mm | 1.5–4% |
| ≥0.5 mm | 1–3% |
Share your resin system, application and color reference — we'll confirm available grades and samples.
